Tested independently by Warrington Fire, this pocket door frame is officially approved for a 30-minute fire rating. In fact, our kit exceeded expectations, lasting an impressive 48 minutes—that’s 60% longer than the standard requirement.
This Kit is Suitable For:
- Doors 44mm thick
- Doors weighing up to 60kg

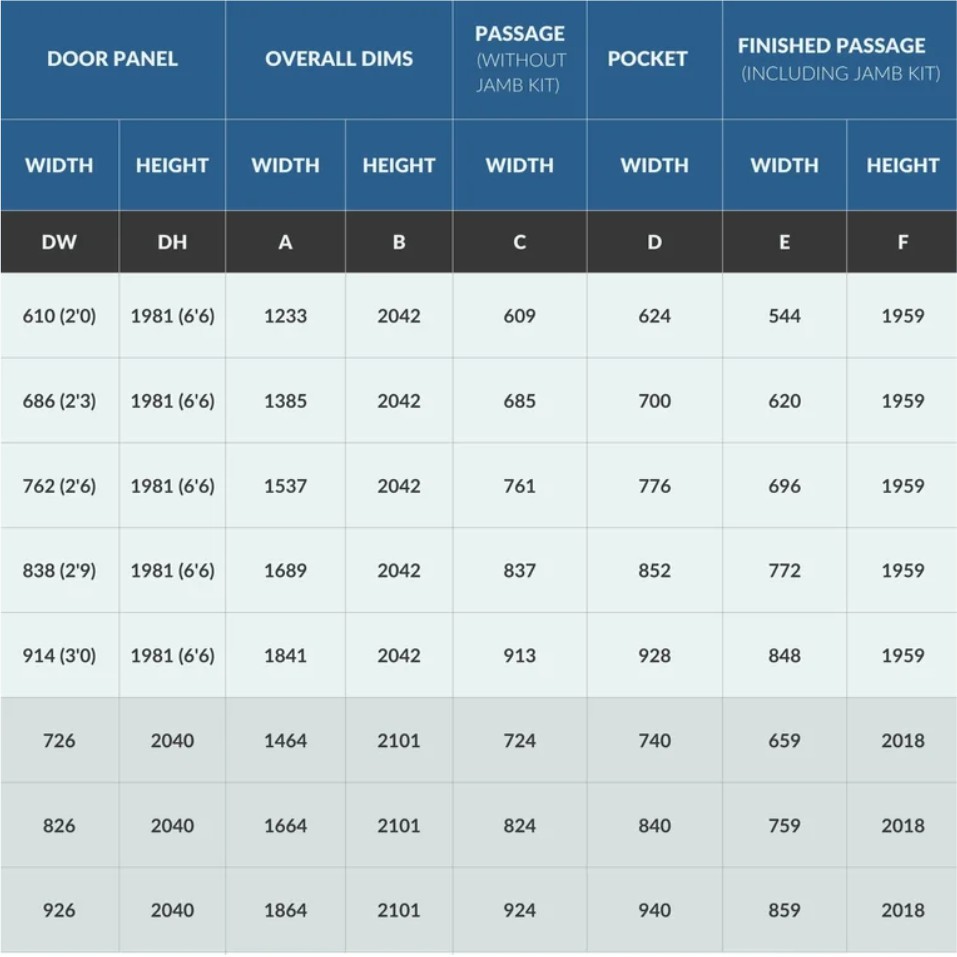

- 63mm, 70mm, or 95mm stud work (refer to dimension table)
Kit Contents:

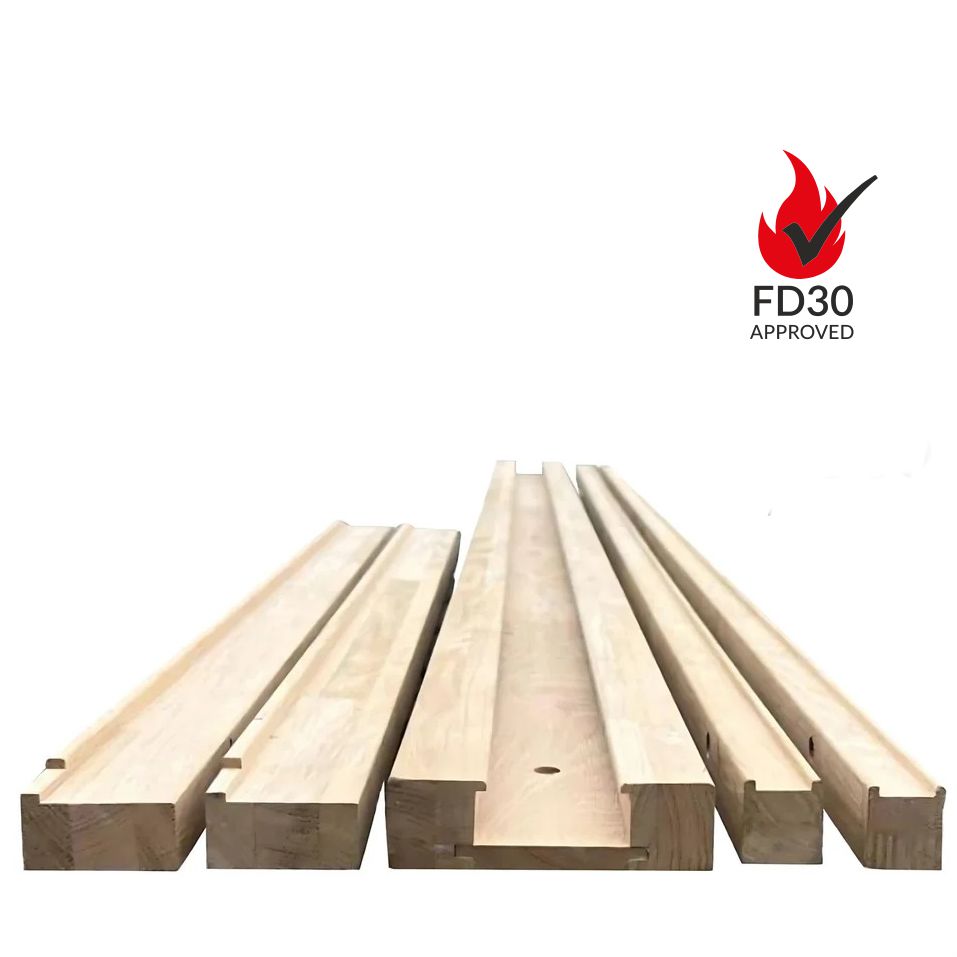

- Complete Solid Oak FD30-approved jamb kit
- Intumescent pack (paintable with fire-resistant paint)

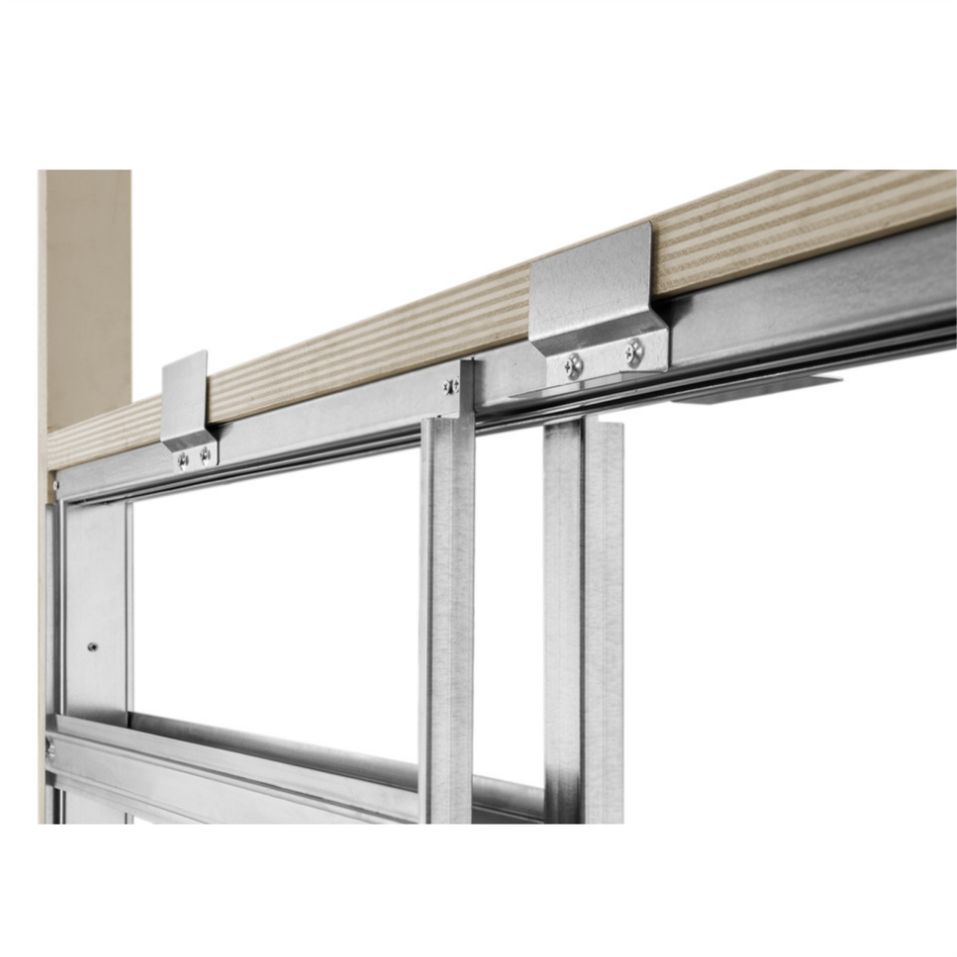

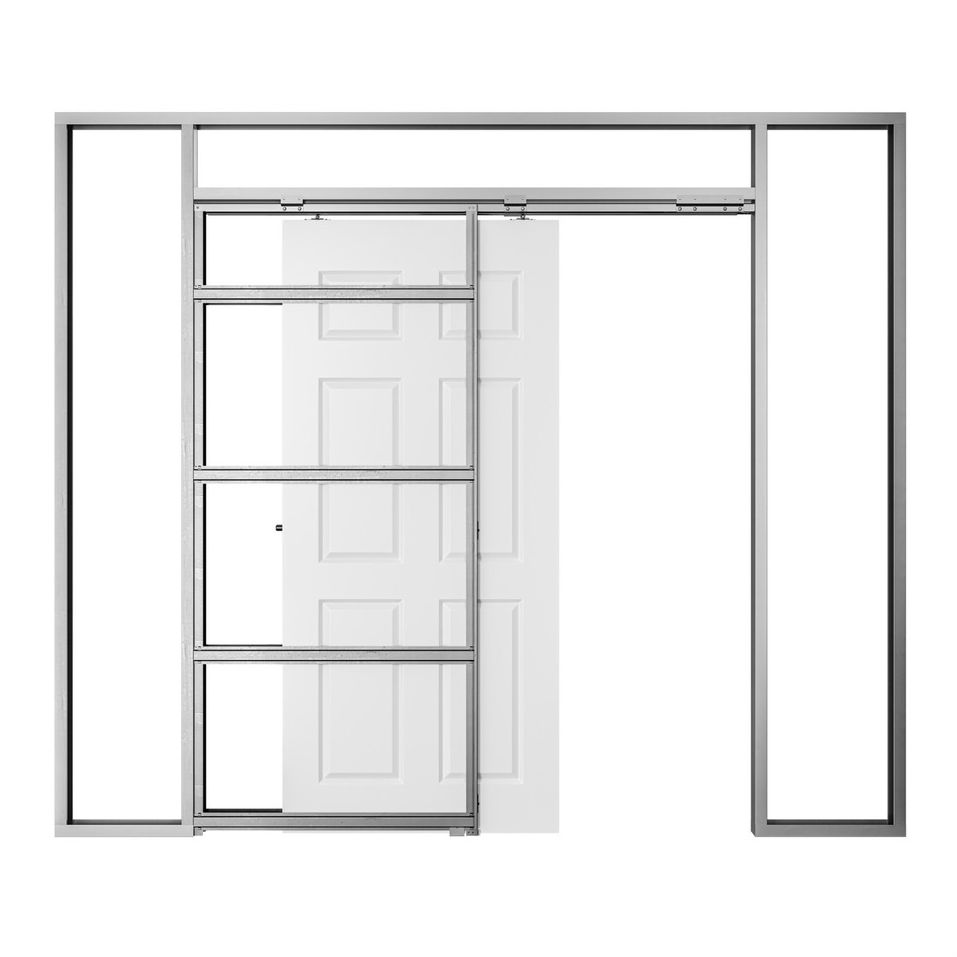

- All required galvanised steel uprights and horizontals, plus the track, to build the pocket
- Mounting brackets for securing the frame to the stud work – designed to also act as plasterboard positioners and supports
- Adjustable pocket entrance floor guide
- Runners with carbon steel, sealed-for-life bearings
- Spring steel door brake (soft-close option available for 30kg–45kg doors)
Items You Will Need to Supply:
- A 44mm FD30 fire-rated door panel (max. 60kg)
- Appropriate stud work
- Plasterboard (see dimension table)
Browse our recommended FD30-approved doors below.
