HOME /Ultra Flush Concealed Door Frame and Door - Push or Pull - Fire Rated - FD30
Ultra Flush Concealed Door Ultra Flush Concealed Doors - Fire Rated FD30 Ultra Flush Invisible Door Satin Chrome Lock Lock Black Lock Brass Satin Hinge Black Hinge Brass Hinge
Ultra Flush Concealed DoorUltra Flush Concealed Doors - Fire Rated FD30Ultra Flush Invisible DoorSatin Chrome LockLock BlackLock BrassSatin HingeBlack HingeBrass Hinge

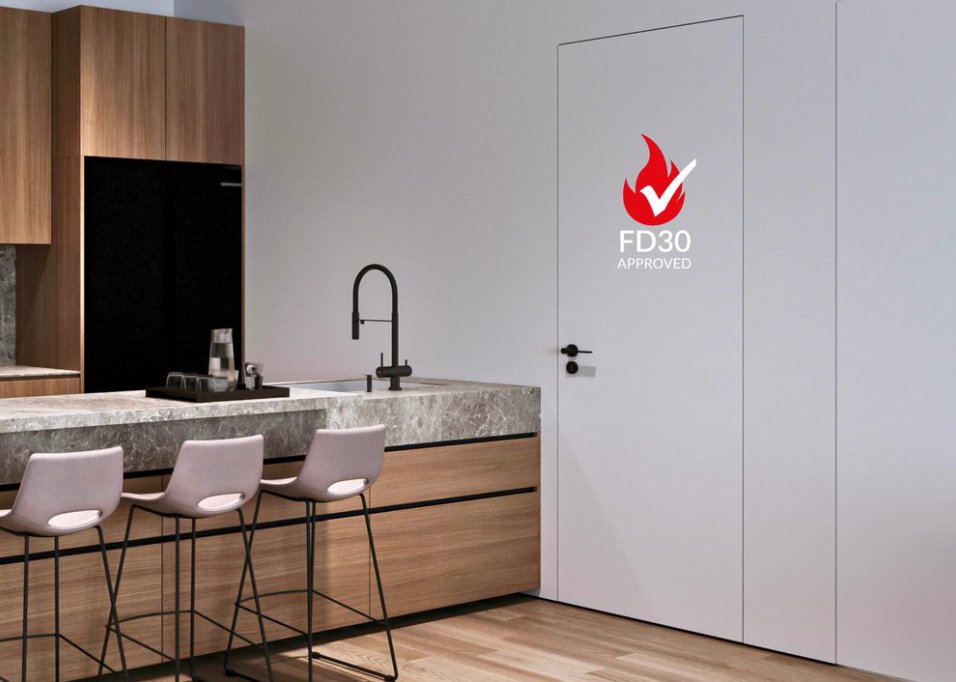

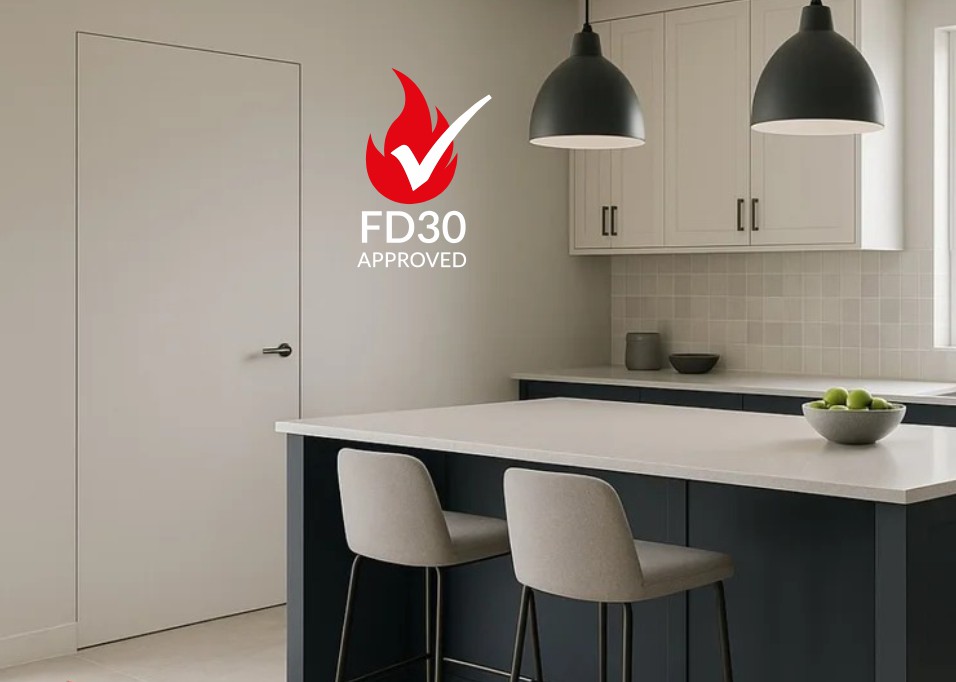

Ultra Flush Concealed Door Frame and Door - Push or Pull - Fire Rated - FD30

(0 Reviews)  Review this item
  • 4-way configuration in one door - Push or pull, left or right handed
  • FD30 version - None fire rated version available here
  • Min stud with 63mm – no max
  • Works with timber and metal studs or masonry walls
  • Complete with door, frame, hinges and latch
  • Available in 7 standard doors sizes (see drop down)
  • Lead time 2-3 working days from order



IN STOCK
£559.95EX VAT
 /  Door Panel Size 610 x 1981mm  /  Magnetic Latch Handle  /  Latch and Hinge Finish Satin Nickel
DescriptionSizeFormatGet File
Ultra Flush - Frame Installation Guide2086241.pdfDOWNLOAD
Ultra Flush - Door Installation Guide989064.pdfDOWNLOAD
Ultra Flush - Door Care and Handling22243.pdfDOWNLOAD

What you get:

  • Specialist primed metal frame, including 2 x uprights, and head section – the frame edge profile allows you skim your plaster up to the edge giving a nice crisp finish for a minimal architrave free look.

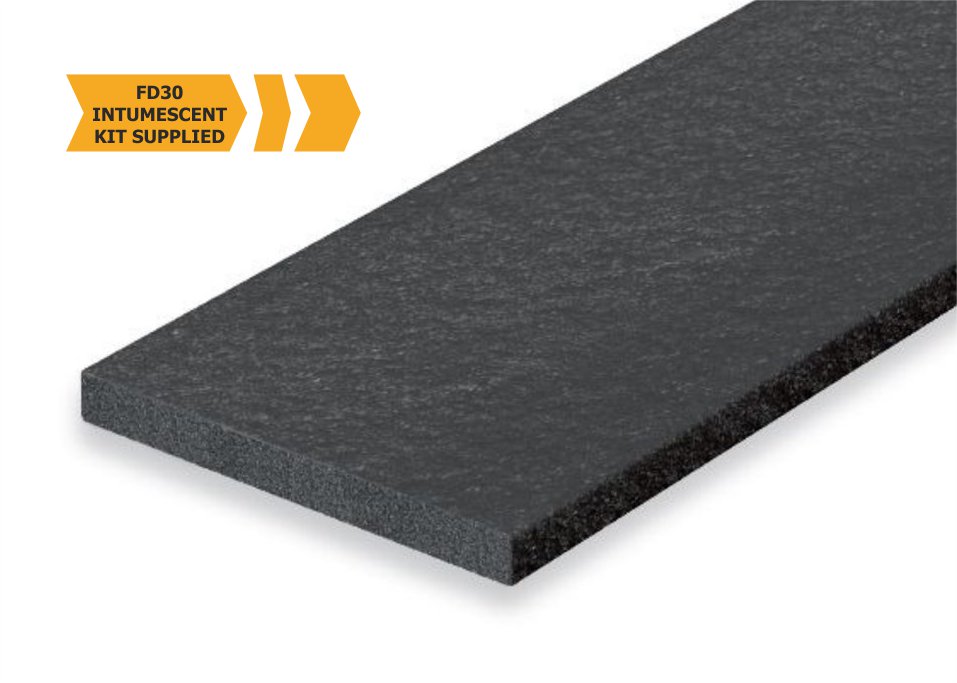

  • Supplied with intemescent kit - for fire rating - FD30
  • White primed2go 44mm solid core flush door (pre-routed for hardware)
  • Concealed fully adjustable 3-way hinge (choice of 3 finishes)
  • Magnetic latch and strike plate (latch, bath or lock - choice of 3 finishes)
  • Bumper seals
  • OSB Spaces – to keep the frame plum whilst installing



Technical

Ultra Flush Door Dimensions

Doors

  • Tested to EN ISO 2409/DIN 53151 – grade 0-1 FD30
  • All Primed 2 Go products are FSC® Certified
  • Doors are specially routed to accepted the hardware and to work with the frame – therefore these edges will require need to be finished on site – see below images.

Ultra Flush Door Edge



Delivery & Returns

  • When the goods are delivered you have 48 hours to notify us of any discrepancies, no claims will be accepted after this time.
  • Delivery Mainland England £100 + VAT
  • 15 + Doors – Please call
  • Please call for delivery to Channel Islands, Scotland and Scottish highlands – as these will incure an extra delivery cost
  • Doors should normally be handled by at least 2 people
  • All doors will be delivered on pallets labelled clearly on both sides. All pallets are banded for security prior to final pallet wrapping so ensuring that the load is safe and kept free from dirt and moisture. All deliveries based on kerbside forklift unloading, unless agreed at time of quotation/order.
  • Due to the bespoke nature of these doors these are a special item manufactured to order and therefore the doors are non-returnable unless due to manufacturing defects notified to us within 48 hours of delivery.



Door Care & Handling

Download here Door care and handling document



Installation

Down load here - Frame installation

Down load here - Door installation
